How to Measure for a Wash Basin and Basin Cabinet
TL;DR: Measuring the wall is the easy part and almost never the part that goes wrong. What actually decides whether a basin fits is the swing of the bathroom door, the height of the waste pipe coming out of the wall, and the fall of the floor towards the floor trap. Take six measurements in a fixed order, and take the door and the floor seriously they are the two constraints Malaysian bathrooms add that overseas guides never mention.
1. Introduction: the wall is not the constraint
Quick Answer: Most basins that do not fit were measured correctly against the wall and wrongly against everything else. Take the wall width, but also the door swing, the waste pipe height, the water inlet positions, the projection into the walkway and the floor level.
A basin is one of the few bathroom items where the failure is total. A toilet that is slightly wrong still works; a basin that projects three centimetres too far means a door that will not open.
And the mistake is rarely arithmetic. It is that the tape measure only ever touched the wall. Bathrooms in Malaysian homes are compact, the door usually opens inwards, the waste comes out of the wall at a height somebody chose years ago, and the floor slopes deliberately towards a trap. Any one of those can rule out a basin that fits the wall perfectly.
The good news is that six measurements settle it, they take about ten minutes, and once you have them a supplier can shortlist for you in one conversation instead of three.
This guide sets out those six in order, shows what the local cabinet range actually spans so you know what you are shortlisting against, covers the clearances that matter, and explains the two constraints unique to bathrooms built like ours. The video below covers basin sizing visually if you prefer to watch first.
Watch: how to size a bathroom basin
A walkthrough of basin width, depth and the clearances that decide whether a size is usable.
Source: How to Size a Bathroom Basin: The Complete Guide — Lave Studio UK
2. The six measurements, in order
Quick Answer: Width available, depth available, waste pipe height, inlet positions, door and traffic clearance, floor level. Take them in that order, because each one narrows what the next one has to consider.
Write all six down. A shortlist built on five of them is not a shortlist.

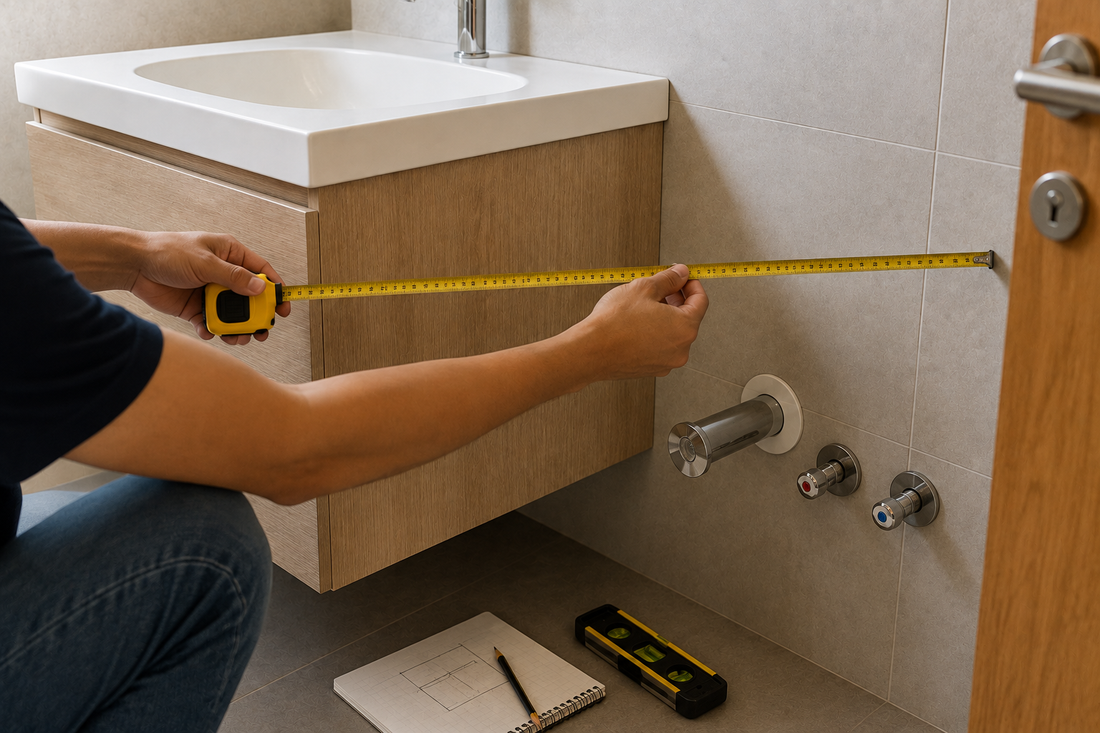

- Width available. Wall to wall, or wall to the nearest obstruction such as a door architrave or a shower screen. Measure at three heights floors and walls are rarely square and use the smallest.
- Depth available. From the finished wall out into the room, to the point where something would start to be in the way. This is the number that decides projection.
- Waste pipe height. From the finished floor to the centre of the waste outlet in the wall. This decides which cabinet internals will clear it and how much usable storage you actually get.
- Water inlet positions. Height and horizontal spacing of the angle valves feeding the tap. Note whether they sit behind where the cabinet back will be.
- Door and traffic clearance. Open the door fully and mark where its leading edge sweeps. Then stand where a person stands to use the basin and check nothing behind them is blocked.
- Floor level. Rest a spirit level on the floor across the basin position and note the fall. Malaysian bathroom floors slope towards a floor trap, which matters for a cabinet with legs or a freestanding basin.
| Measurement | What it decides | If you skip it |
|---|---|---|
| Width available | Which cabinet widths are possible | Cabinet fouls an architrave or screen |
| Depth available | How far the bowl may project | You squeeze past it every day |
| Waste pipe height | Cabinet internals and usable storage | The trap eats the shelf you paid for |
| Inlet positions | Whether the cabinet back needs cutting | Cabinet will not sit flat to the wall |
| Door and traffic clearance | Maximum projection in practice | Door will not open fully |
| Floor level | Whether a floor-standing unit will rock | Doors go out of alignment |
Compiled measuring reference for wash basins and basin cabinets in Malaysian bathrooms. Describes the relationship between each measurement and the fitting outcome.
Key takeaway: Six measurements, in order. The last two are the ones people skip and the ones that ruin installations.
3. What you are actually shortlisting against
Quick Answer: Knowing the real spread of sizes in the market tells you whether your measurements are comfortable or tight. Big Bath's basin cabinet sets span widths from around 460 to 1,000mm, depths from 250 to 500mm and heights from 420 to 800mm, across 59 sets.
Those ranges are more useful than any single "standard size", because they show where the choices actually are.
| Dimension | Range available | Constrained by | Check against |
|---|---|---|---|
| Cabinet width | About 460 to 1,000mm | Wall run and obstructions | Measurement 1 |
| Cabinet depth | About 250 to 500mm | Walkway and door swing | Measurements 2 and 5 |
| Cabinet height | About 420 to 800mm | Who uses it, and mounting type | Measurements 3 and 6 |
| Basin mountings | Five: wall-hung, above-counter, under-counter, pedestal, freestanding | What the wall and floor allow | All six |
| Basin choice | Over 120 products in the range | Bowl shape and tap holes | Measurements 2 and 4 |
Compiled from the published dimensions of Big Bath's basin cabinet set collection (59 sets) and the wash basin collection (122 products). Ranges reflect the catalogue at the time of writing; stock varies.
Read that against your own numbers and the picture is usually immediate. A wall run of 900mm has plenty of options. A run of 500mm sits near the bottom of the width range but is still served. A depth allowance under 300mm pushes you towards the shallow end and away from most above-counter bowls, because a vessel basin sits on top of the counter and adds its own footprint one of several reasons to think carefully before committing to a counter top basin.
Key takeaway: Widths run roughly 460 to 1,000mm and depths 250 to 500mm. Your numbers tell you immediately whether you are choosing or squeezing.
Measurements taken and now choosing a bowl?
The tap holes have to match the tap you want — see how tap hole configurations work →
4. The clearances that decide whether it is usable
Quick Answer: A basin that technically fits can still be unpleasant to use. You need elbow room to the side, standing room in front, and enough distance from the toilet or shower screen that using one does not mean standing in the other.
These are the numbers that separate a bathroom that works from one that merely contains everything.
| Clearance | Relative priority | What it affects | If space is short |
|---|---|---|---|
| Standing room in front |
|
Whether you can lean over the bowl | Choose a shallower cabinet |
| Door swing |
|
Whether the door opens at all | Reposition, or rehang the door |
| Elbow room to each side |
|
Comfort while washing | Narrower bowl, same cabinet |
| Distance from the toilet |
|
Whether two people can pass | Wall-hung basin, clear floor |
| Mirror and light above |
|
Usability rather than fit | Mirror cabinet instead of a shelf |
Compiled planning reference for basin clearances. Bar lengths express relative priority as a planning aid, not measured ergonomic standards.
The compromise column is the useful one. Almost every clearance problem has an answer that does not involve giving up the basin you wanted a shallower cabinet, a narrower bowl on the same carcass, or moving the storage upward into a mirror cabinet above the basin instead of outward into the room.
Key takeaway: Standing room and door swing outrank everything. Most other clearance problems have a shallower or narrower answer.
5. Two things Malaysian bathrooms add
Quick Answer: Our floors slope towards a floor trap and our bathrooms get washed down rather than wiped. So a floor-standing cabinet sits on a slope and stands in water. A wall-hung cabinet avoids both, which is why it is worth the extra fixing work here.
These two facts change the answer often enough to be worth stating plainly.
The first is the fall. A bathroom floor is laid to drain, so it is not level, and the fall is often greatest near the wall where a basin goes. A floor-standing cabinet placed on that slope will either rock or sit with a visible taper at the skirting, and its doors will drift out of alignment as they settle. Adjustable feet solve it, but only if the cabinet has them check before buying rather than after.
The second is water. In a bathroom that is sluiced and squeegeed, the bottom fifty millimetres of any floor-standing carcass spends its life damp. That is the single most common way a basin cabinet fails here, and it has nothing to do with the quality of the panel water wicks up from the cut bottom edge, which is rarely sealed as well as the faces are.
Both problems disappear with a wall-hung cabinet. It hangs above the wet zone, the floor slope is irrelevant, and mopping goes underneath it. The cost is that it must be fixed into something solid, which means finding out what the wall is made of before you buy a masonry wall is straightforward, a light partition needs a proper backing plate.
Key takeaway: Sloping wet floors punish floor-standing cabinets. If the wall will take it, hang the cabinet.
6. Turning your numbers into a shortlist
Quick Answer: Each measurement rules something out. Read them in order and the shortlist assembles itself usually down to two or three genuine candidates rather than a hundred.
This is the step that turns ten minutes of measuring into a decision.
| If you find | This is ruled out | Look at instead |
|---|---|---|
| Shallow depth available | Above-counter and vessel bowls | Semi-recessed or under-counter |
| Door sweeps the basin wall | Anything with deep projection | Compact wall-hung basin |
| High waste outlet | Cabinets with fixed low shelves | Open-base or single-shelf cabinets |
| Noticeable floor fall | Floor-standing without adjustable feet | Wall-hung, or adjustable legs |
| Narrow wall run | Wide double-door cabinets | Narrow cabinet plus a mirror cabinet |
| Inlets sit high on the wall | Cabinets with a solid full back | Cabinets designed to be cut out |
Compiled shortlisting reference for Malaysian bathrooms. Guidance is indicative; a supplier can confirm specific products against your measurements.
Worth noticing how often the answer moves storage rather than removing it. A narrow wall run does not mean less storage it means the storage goes up rather than sideways, which in a small bathroom is usually the better answer anyway.
Key takeaway: Each measurement removes options. Read them in order and two or three real candidates are left.
7. The mistakes that cost people a delivery
Quick Answer: Measuring to the tile rather than the finished wall, measuring at one height only, forgetting the tap projects forward too, and measuring a bathroom that is about to be re-tiled those four account for most returns.
All of them are avoidable in the same ten minutes.
The finished wall is the surface the cabinet will actually touch. If the bathroom is being re-tiled, the wall is going to move inwards by the thickness of the tile and its adhesive, on every wall. Measure the space you will have, not the space you have.
Measuring at one height hides out-of-square walls, which are common and rarely dramatic but a wall that narrows by eight millimetres towards the floor will stop a cabinet that fitted perfectly at counter height. Three measurements, use the smallest.
The tap is the forgotten projection. A basin that clears the door by two centimetres does not clear it once a mixer stands on the back of it, and a tall vessel mixer projects further still. Add the tap to your depth check before ordering.
And take the numbers with you. A supplier can shortlist against six measurements in a couple of minutes, which is the entire value of having taken them — the basin cabinet sets and the wash basin range are large enough that a filtered list is far more use than a browse.
Key takeaway: Measure the finished wall, at three heights, and add the tap to the projection. Then take the numbers with you.
8. Conclusion: ten minutes decides the next ten years
Choosing a wash basin is mostly a pleasant job, and measuring for one is not. But the measuring is what determines whether the pleasant part produces something that works.
Six numbers do it: width, depth, waste height, inlet positions, door and traffic clearance, floor level. Take them against the finished wall, take the width at three heights, and remember that a tap projects forward as well as upward.
Then let the numbers narrow the field before taste does. In a compact bathroom with a sloping floor and an inward-opening door, that process will usually point at a wall-hung basin or a shallow cabinet and it will point there in ten minutes rather than after a delivery that has to go back.
9. Frequently asked questions
What measurements do I need before buying a wash basin?
Six: the width available, the depth available, the height of the waste outlet in the wall, the water inlet positions, the door and traffic clearance, and the fall of the floor. Take them in that order, because each narrows what the next has to consider.
What size basin cabinets are available in Malaysia?
Big Bath's basin cabinet sets span roughly 460 to 1,000mm wide, 250 to 500mm deep and 420 to 800mm high across 59 sets, so most wall runs are served. Depth is usually the tighter constraint in a compact bathroom, not width.
Should I measure to the tiles or the bare wall?
To the finished wall the surface the cabinet will actually touch. If the bathroom is about to be re-tiled, subtract the tile and adhesive thickness from every wall, or you will be measuring a room that no longer exists.
Why does the waste pipe height matter for a basin cabinet?
Because the trap has to sit somewhere inside the cabinet, and it takes up the space a shelf would otherwise use. A high outlet often rules out cabinets with fixed low shelves and points towards an open-base design.
Is a wall-hung basin cabinet better in a Malaysian bathroom?
Usually, yes. Bathroom floors here slope towards a floor trap and get washed down, so a floor-standing carcass sits on a slope and stands in water. A wall-hung unit avoids both, provided the wall will take the fixings.
Do I need to allow for the tap when measuring depth?
Yes. The tap projects forward as well as upward, and a tall vessel mixer projects further still. A basin that clears a door by a couple of centimetres may not clear it once the tap is fitted.
