TL;DR: A mirror cabinet is really three products in one a mirror, a light and a storage unit and most people choose it as if it were only the third. Size it to the basin, check the depth against your head clearance, and get the lighting right, because that is what you notice every single morning.
1Introduction: the fitting you look at more than any other
Quick Answer: You stand in front of the mirror cabinet twice a day with your face 40cm from it. That makes it the most closely inspected object in the house and the reason lighting quality matters more here than storage capacity ever will.
Mirror cabinets get bought the way shelves get bought. How wide is the wall, how much can it hold, does it match the vanity. Then it goes up, and the owner spends the next five years shaving or applying makeup in their own shadow.
The storage is genuinely useful hiding the clutter that otherwise colonises a basin is half the point. But storage is the easy part. Almost any cabinet holds what a bathroom needs.
What separates a good mirror cabinet from a frustrating one is dimensional fit and light. This guide covers both properly, using the sizes and constructions actually available in Malaysia rather than generic advice.
The video below walks through fitting a powered mirror cabinet, which is useful context for the electrical planning discussed later.
Watch: installing a powered mirror cabinet
How a mirror cabinet with lighting is mounted and connected, including where the power feed needs to arrive.
2Sizing: match the basin, then check the depth
Quick Answer: Size the cabinet to the basin or vanity below it, ideally the same width or slightly narrower. Then check the depth. Mirror cabinets typically project 120–130mm from the wall, and that projection is what you lean into when using the basin.
Width is the measurement everyone takes. Depth is the one that causes regret.
| Basin / vanity width | Cabinet width | Doors | Typical setting |
|---|---|---|---|
| Under 500mm | 450–600mm | Single | Powder room, small ensuite |
| 500–700mm | 600–750mm | Single or double | Condo main bathroom |
| 700–900mm | 760–900mm | Double | Family bathroom |
| 900–1,200mm | 900–1,200mm | Double or triple | Master bathroom |
| Double basin, 1,200mm+ | 1,350–1,600mm | Triple, or mirror plus side cabinet | Landed house master suite |
Planning model. Cabinet width bands reflect the mirror cabinet sizes stocked by Big Bath, which run from roughly L450mm to L1,600mm including mirror-plus-side-cabinet combinations.
Now the depth. Most mirror cabinets project between 120mm and 130mm from the wall face. That sounds trivial until you consider what happens when you lean forward over the basin to rinse your face.
- Deep basin, shallow counter. If the basin sits close to the wall, a projecting cabinet is directly above your head as you lean in. Check the clearance.
- Narrow bathroom. In a bathroom under 1,600mm wide, 130mm of projection at head height is noticeable when passing the basin.
- Recessed option. Where the wall allows, a recessed cabinet removes the projection entirely but this is rarely possible in a condo with concrete or party walls.
Measure the distance from the wall to the front edge of your basin. If the cabinet projects more than about half of that, expect to knock your head occasionally. Browse the mirror cabinet range with both numbers in hand.
Key takeaway: Width follows the basin; depth follows your head clearance. The second measurement is the one people forget and then live with.

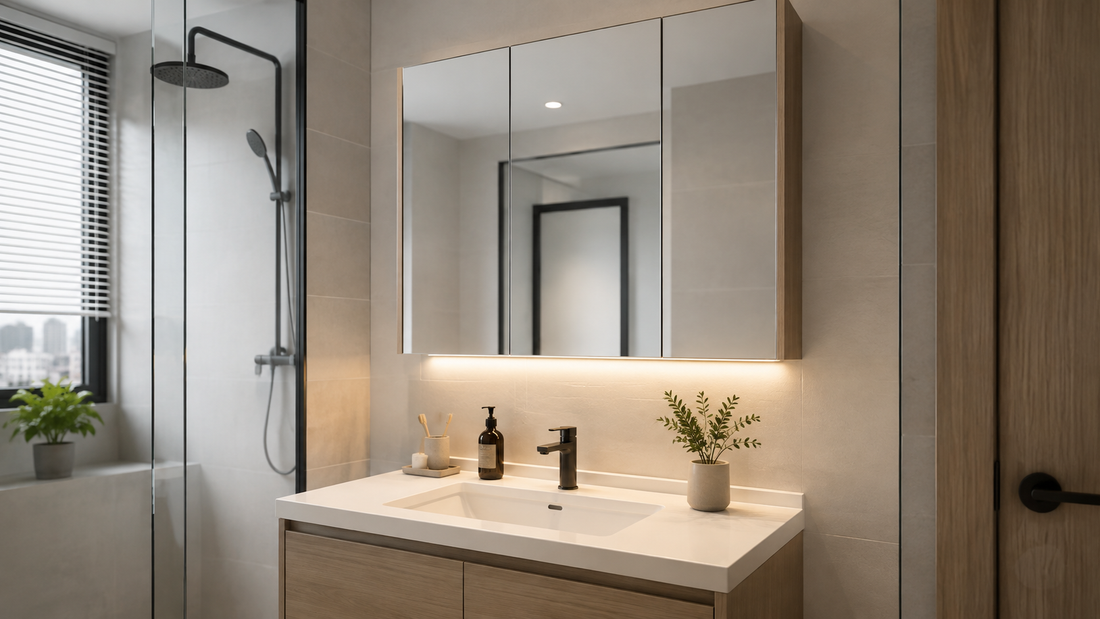

3Lighting: why your ceiling light is working against you
Quick Answer: A ceiling light sits behind and above you, so it casts your own shadow onto your face in the mirror. That is why bathrooms feel bright but mirrors feel dim. An illuminated mirror cabinet fixes it by putting light in front of you at face height.
This is the single biggest reason to pay for an LED mirror cabinet, and it is almost never explained properly.
Malaysian bathrooms are usually lit by one central ceiling fixture. Stand at the basin and your head blocks that light from reaching your own face. The result is downward shadow under the eyes, nose and chin — precisely the areas you are trying to see.
| Arrangement | Face lighting quality | Main problem |
|---|---|---|
| Ceiling light only |
|
Your head shadows your own face |
| Downlight above the mirror |
|
Harsh shadows under eyes and chin |
| LED strip along mirror top |
|
Better, still top-weighted |
| Backlit mirror (perimeter glow) |
|
Soft and even; ambient rather than task |
| Vertical light on both sides |
|
Best for grooming; needs the wall space |
Compiled reference. Bars express relative evenness of facial illumination rather than measured lux values. Arrangement list reflects the lit and unlit mirror cabinet configurations stocked by Big Bath.
Two practical notes. Light from the sides beats light from above for anything involving your face, because it fills shadow rather than creating it. And colour temperature matters: a neutral white around 4000K shows skin tones honestly, while very cool light makes everything look clinical.
If your cabinet has no lighting and you are not ready to replace it, a separate lit bathroom mirror elsewhere in the room is a reasonable interim fix.
Key takeaway: Light needs to come from in front of you at face height, not from the ceiling behind you. That is the entire argument for an illuminated mirror cabinet.
Lighting is impossible to judge from a product photo.
Stand in front of the lit models and see the difference on your own face — find your nearest showroom →

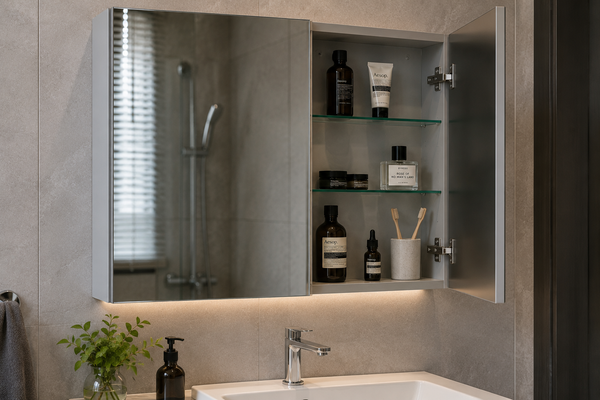

4What actually fits inside one
Quick Answer: At around 120mm internal depth, a mirror cabinet holds bottles, tubes, razors and small boxes standing upright. What it does not hold is anything tall or bulky shampoo litres, hair dryers, folded towels. Those need a separate basin cabinet.
Expectations here are worth setting honestly, because the shallow depth is a genuine limit rather than a design flaw.
| Item | Fits? | Where it should go instead |
|---|---|---|
| Toothbrushes, paste, razors | Yes, ideal | — |
| Skincare bottles and tubes | Yes | — |
| Medicines and first aid | Yes, but heat and damp shorten shelf life | A cool dry cupboard outside the bathroom |
| Large shampoo bottles | Rarely — too tall | Shower shelf or basin cabinet |
| Hair dryer | No — too bulky | Basin cabinet drawer |
| Towels | No | Towel rail or shelf — they need airflow |
| Cleaning supplies | No | Under-basin storage, away from toothbrushes |
Compiled reference. Fit assessments based on the roughly 120–130mm cabinet depth typical of the mirror cabinets stocked by Big Bath.
The sensible pairing is a mirror cabinet for everything small and used daily, plus a basin cabinet underneath for the bulky items. Together they clear the counter completely, which is the actual goal.
Key takeaway: A mirror cabinet stores small daily items, not bulk. Pair it with a basin cabinet rather than expecting it to do both jobs.
5Materials, and why mirrors fail in Malaysian bathrooms
Quick Answer: Mirror cabinets almost always fail from the edges inward. Humid air reaches the back of the glass, the silvering lifts, and dark blotches creep in from the corners. Body material and edge sealing decide how long that takes.
In a tropical bathroom this is the failure mode to plan against. It is not the hinges and it is not the doors.
| Body material | Humidity tolerance | Notes |
|---|---|---|
| Aluminium | Excellent | Light, will not rust; the practical default here |
| SUS304 stainless | Excellent | Most durable; heavier, needs solid fixings |
| Carbon steel (coated) | Good while the coating is intact | Watch for chips at cut edges and screw holes |
| Solid wood | Moderate; needs proper sealing | Warmest look; best in a well-ventilated bathroom |
| PVC | Excellent | Waterproof; less rigid on wide spans |
Compiled reference for tropical bathrooms. Material list reflects the mirror cabinet constructions stocked by Big Bath — aluminium, SUS304, carbon steel and solid wood.
Three habits extend the life of any of them considerably.
- Run the exhaust fan during and after showering. Lowering humidity protects the mirror backing more than any product you can apply.
- Wipe the bottom edge dry. Water sits on the lower frame and wicks toward the silvering. It takes three seconds.
- Do not spray cleaner directly at the mirror. Spray onto the cloth. Liquid running into the edge seal is exactly what causes black spotting.
A demister pad is worth having if your bathroom fogs badly it keeps the mirror clear and, usefully, keeps that area of glass warmer and drier.
Key takeaway: Mirrors die from the edges. Ventilation, a dry bottom edge and spraying cleaner onto the cloth will add years.
6Mounting height and power
Quick Answer: Centre the mirror on the tallest regular user's eye line rather than on the wall. As a working rule the cabinet base sits about 200–250mm above the counter, which clears taps and splashes while keeping the mirror usable for everyone.
These decisions all get made at installation, and every one of them is annoying to change afterwards.
- Height. Hang it for people, not for symmetry. If the household's heights differ a lot, favour a taller mirror rather than compromising in the middle.
- Clearance above the tap. Leave enough room that a tall mixer tap does not hit the cabinet base or its doors when they swing.
- Power feed position. For a lit cabinet, the supply must arrive behind the unit where it can be concealed. Decide this before tiling if you possibly can.
- Fixings. A loaded mirror cabinet is heavy. Fix into solid wall or proper anchors, never into tile adhesive alone.
- Door swing. Check the doors clear the shower screen, the entry door and any adjacent wall before drilling.
If the electrical feed is not already there, get it planned properly. A bathroom is a wet location and the wiring for a lit cabinet is a job for a competent electrician, not an extension lead.
Key takeaway: Mount to the eye line, not the wall centre, and settle the power feed before the tiler finishes.
7Conclusion: buy it as a light, not as a box
Storage capacity is the easiest part of this decision and the part most buyers concentrate on. Nearly every mirror cabinet holds what a bathroom actually needs, so it rarely separates one model from another.
Dimensions and light do. Get the width matched to the basin, check the depth against your head clearance, choose a body material that survives tropical humidity, and put light in front of your face rather than above it.
Do that and you will notice the difference every morning which is more than can be said for an extra shelf.
8Frequently asked questions
What size mirror cabinet do I need?
Match it to the basin or vanity below — the same width or slightly narrower usually looks best. A 600mm basin suits a 600–750mm cabinet; a double basin over 1,200mm suits a 1,350mm or wider unit.
How high should a bathroom mirror cabinet be mounted?
Position it for the eye line of the tallest regular user rather than centring it on the wall. In practice the base usually sits around 200–250mm above the counter, which clears the tap and any splashing.
How deep is a mirror cabinet?
Typically 120–130mm from the wall. Check that projection against how far your basin sits from the wall, because the cabinet will be above your head when you lean forward to wash your face.
Is an LED mirror cabinet worth it?
Yes, if you shave or apply makeup at the mirror. A ceiling light sits behind you and casts your own shadow onto your face. Light built into the mirror comes from the front at face height and removes that shadow.
Why do bathroom mirrors go black at the edges?
Humid air reaches the back of the glass and lifts the silvering, starting at the edges. Running the exhaust fan, wiping the bottom edge dry and spraying cleaner onto a cloth rather than the mirror all slow it down.
Can I store medicine in a bathroom mirror cabinet?
You can, but a bathroom is warm and humid, which shortens the shelf life of many medicines. A cool, dry cupboard elsewhere in the home is a better place for anything you need to keep for long.
