Basin Tap Holes Explained: Single, Double or None

1. Introduction: the hole count commits you to a tap

Quick Answer: A basin comes with zero, one, two or three tap holes. That count decides which taps will physically mount on it, and it cannot be increased safely after the ceramic is fired and glazed.

It is the specification people skip, and the one that generates the most returns.

A basin is chosen for its shape and its size. The tap is chosen a week later, often from a different page, sometimes from a different shop. The two arrive on site, the plumber holds them up together, and the conversation that follows is about which one is going back.

The reason it happens so often is that hole count looks like a small detail on a spec sheet, sitting between the dimensions and the finish. It is not a small detail. It is a hard compatibility limit, in the same way a trap set-out distance is a hard limit on a toilet the number decides what is possible, and no amount of preference changes it.

This guide covers the four configurations and what each one demands, the cold-water-only reality that governs most Malaysian basins, what a zero-hole basin actually commits you to before the tiler arrives, how tap reach and height have to suit the bowl shape, and a short checklist for ordering the two together. The video below shows a single-hole mono mixer going in, which is the most common combination here.





---

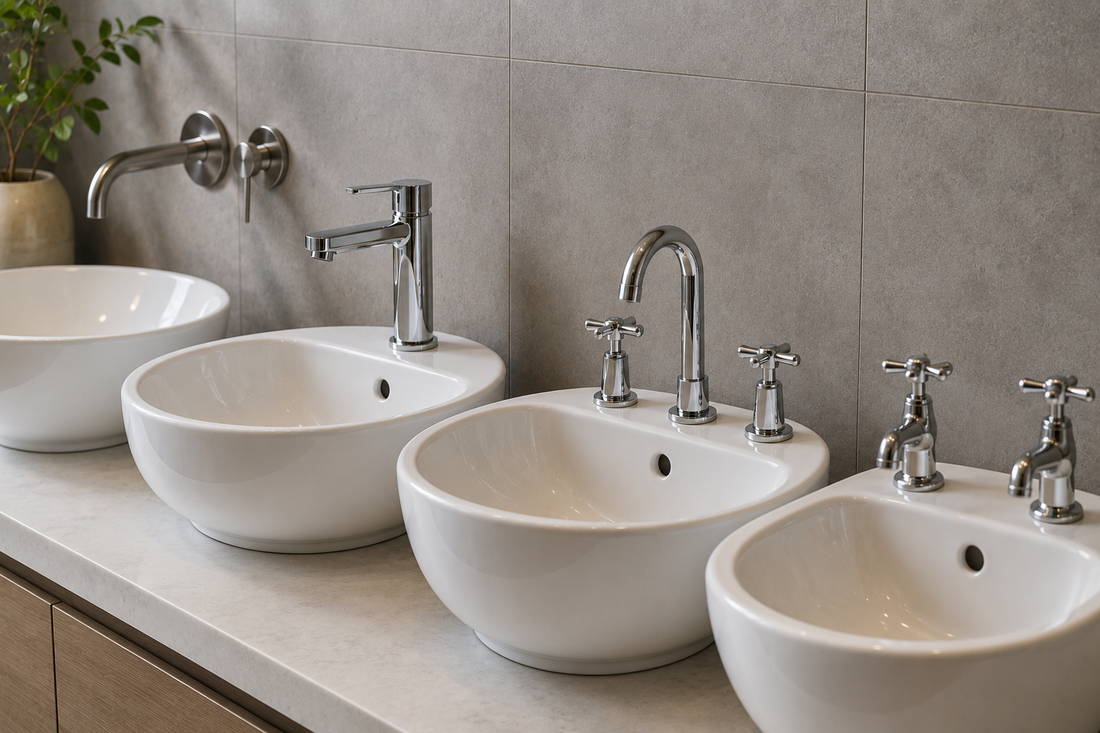

2. The four configurations, and what each one demands

Quick Answer: Zero holes needs a wall or deck mixer mounted elsewhere. One hole takes a pillar tap or a mono mixer. Two holes take separate hot and cold pillar taps. Three holes take a spread mixer with the spout in the middle and handles either side.

Each configuration closes off the others, so it is worth seeing all four before committing.

Basin tap hole configurations from zero to three holes, showing which tap types fit each, what else the installation requires and which basin styles typically carry that configuration.

Holes	Taps that fit	Also requires	Usually seen on
None	Wall mixer or counter-mounted mixer	Pipework set in the wall or counter	Vessel and designer basins
One	Pillar tap or mono mixer	One supply, or two if mixing	Most basins sold here
Two	Separate hot and cold pillar taps	Both supplies at the basin	Traditional and heritage styles
Three	Spread or widespread mixer set	Both supplies, matched hole spacing	Wide counter-top basins

Compiled configuration guide for wash basins sold in Malaysia. Individual products vary; the basin's own specification sheet takes precedence.

The three-hole row hides a trap of its own. A three-hole mixer is not a universal fitting — the distance between the outer holes has to match the tap set, and a basin drilled for one spacing will not accept a tap made for another. If a basin has three holes, measure the centres before ordering, not after.

---

3. The Malaysian detail: one hole often means cold only

Quick Answer: Most Malaysian basins have one water supply, and it is cold. A single hole therefore takes a pillar cold tap, not a mixer and buying a mixer for a basin with no hot supply leaves you with a two-handle tap where one handle does nothing.

This is the gap between British buying guides and a Kuala Lumpur bathroom.

In a temperate country, hot and cold at the basin is assumed, and every article about tap holes is really an article about how to mix them. Here, hot water at the basin is a choice somebody made usually a storage heater or a point-of-use unit and in a large share of homes and almost all older units, nobody made it. The basin gets one pipe.

Which is why Big Bath's tap range, running to 237 products, carries a distinct line of basin cold taps alongside the mixers. Titles like Basin Cold Tap and Above Counter Basin Cold Tap are not a budget compromise; they are the correct product for the supply that is actually there. You will not find that category filled out in a UK catalogue.

Basin water supply arrangements found in Malaysian homes matched to the correct tap type, the hole count required and the common mistake made with each.

Supply at the basin	Correct tap	Holes needed	Common mistake
Cold only	Pillar cold tap	One	Buying a mixer with a dead handle
Cold now, hot planned	Mono mixer, cold tail capped	One	Not running the second pipe first
Hot and cold	Mono mixer	One	Mismatched supply pressures
Hot and cold, wide basin	Three-hole spread mixer	Three	Hole spacing does not match the set
Concealed in wall	Wall-mounted tap or mixer	None	Deciding after the wall is tiled

Compiled from typical Malaysian basin supply arrangements and the tap categories carried in Big Bath's taps and fittings range. A planning guide, not a substitute for checking the pipework on site.

Row two is worth planning around. If hot water at the basin is on the list but not in the budget this year, a single-hole mono mixer with the hot tail capped off is the sensible purchase — the tap is already correct, and the day the heater goes in the only job is connecting a pipe. Choosing a cold pillar tap instead means buying a second tap later.

---

4. Zero holes: a decision made before the tiler arrives

Quick Answer: A basin with no tap holes needs the tap somewhere else — on the wall behind it or on the counter beside it. Both require pipework roughed in at the right height and position, which means the choice has to be made before the wall is closed up and tiled.

This is the configuration that turns a shopping decision into a construction sequence.

A wall-mounted tap looks effortless on a vessel basin, and that is exactly the point of it — nothing on the rim, nothing to clean around, the whole bowl reading as a single object. What makes it work is a pipe stub set into the wall at a specific height above the finished counter and centred on the bowl. Get that height wrong by thirty millimetres and the spout either splashes off the rim or sits too low to get your hands under.

The catch is timing. That stub goes in while the wall is open. Once tiles are on, moving it means taking tiles off, and the tiles will not go back invisibly. So a zero-hole basin is not really a basin decision at all — it is a decision about the wall, taken in the same conversation as the basin height and clearances.

Counter-mounted taps beside a zero-hole vessel basin are the more forgiving version. The hole goes through the counter rather than the wall, so it can be drilled at fit-out and adjusted if the layout shifts — provided the counter material allows drilling, which stone and solid surface do and some fabricated tops do not.

---

5. Height and reach: the tap has to suit the bowl

Quick Answer: The right hole count still gives you the wrong tap if the spout is too short or too low. A vessel basin sitting on a counter needs a tall tap; a countersunk basin needs a standard one. The spout should deliver water near the centre of the bowl, not onto its back wall.

Compatibility is physical as well as numerical.

Basin mounting styles matched to the tap height required, where the spout should aim and the symptom that appears when the tap is the wrong height for the bowl.

Basin style	Tap height needed	Spout should reach	Symptom if wrong
Vessel on counter	Tall vessel mixer	Over the rim, into the bowl	No hand room under the spout
Semi-recessed	Medium height	Past the front lip	Water lands on the ceramic shelf
Under-counter	Standard, longer reach	Past the counter overhang	Splashing onto the counter edge
Wall hung with holes	Standard	Bowl centre	Stream hits the back wall
Wall-mounted tap	Set by the pipe stub	Bowl centre, from above	Splashback across the tiles

Compiled matching guide for basin mounting styles and tap geometry. Individual basin and tap dimensions vary; check both specification sheets together.

The splashing rows all describe the same underlying error — water arriving at the wrong point in the bowl. It is worth thinking about when picking a counter-top vessel basin, because a tall bowl with a standard tap is the classic version of this mistake, and no amount of adjustment fixes it afterwards.

---

6. Why you cannot simply drill another hole

Quick Answer: Vitreous china is glazed and under internal stress. Drilling it after firing risks cracking the basin outright, and any crack that starts at a new hole tends to travel. Where a knock-out is provided by the maker it is safe to open; anywhere else, it is not.

People ask this constantly, and the honest answer is that ceramic does not behave like a countertop.

A basin is formed and fired as one piece, and the glaze is a hard skin over a slightly different body underneath. Cutting through that skin with a rotating bit concentrates heat and force at a single point on a curved, unsupported surface. Sometimes it works. When it does not, the basin is scrap, and it usually fails at the moment of breakthrough after the plumbing is already routed for the tap you were adding.

What is genuinely safe is the opposite move. Many one-hole basins are cast with additional positions marked as removable knock-outs on the underside, intended to be opened for a three-hole set. Those are designed in, thin, and unglazed on the reverse. If your basin has them, use them. If it does not, choose a tap that fits the holes you have, or change the basin.

Counter-top materials are the escape route where one exists. Stone and solid-surface counters can be drilled cleanly by a fabricator, which is why a deck-mounted tap beside the bowl solves problems that a basin-mounted tap cannot.

---

7. Ordering the two together: a short checklist

Quick Answer: Confirm six things before paying: hole count, hole spacing if three, supplies available, tap height against bowl height, waste type, and whether the basin ships with a waste already. Five minutes of checking prevents a return.

The checks are quick, and they are the same every time.

Six checks to complete before ordering a wash basin and tap together, showing where to find each answer and what goes wrong if the check is skipped.

Check	Where to find it	If skipped
Hole count	Basin specification sheet	Tap will not mount at all
Hole spacing	Measure centre to centre	Three-hole set does not line up
Supplies present	Look under the existing basin	A mixer handle that does nothing
Tap height vs bowl	Both specification sheets	Splashing or no hand room
Slotted or unslotted waste	Does the basin have an overflow	Overflow cannot drain
Waste included?	Look for "c/w waste" in the title	Buying a second one you do not need

Compiled pre-order checklist for Malaysian bathroom projects. Product specification sheets and manufacturer templates take precedence.

The last two rows are the ones that save money rather than heartache. Basins listed as supplied with a waste already include the correct one for that bowl, and the slotted-versus-unslotted question is decided by whether the basin has an overflow — a check that takes two seconds and is wrong surprisingly often.

---

8. Conclusion: buy the pair, not the pieces

Tap holes are boring right up until they are the reason a bathroom cannot be finished on Saturday.

The rule that prevents nearly all of it is to treat the basin and the tap as one purchase rather than two. Count the holes, measure the spacing if there are three, and look under the existing basin to see how many pipes are actually there because in Malaysia the honest answer is often one, and that single fact rules out half the tap catalogue.

Where the basin has no holes at all, remember that the decision has moved into the wall, and walls are decided before tiles. And if you are ever tempted to drill a fresh hole through fired ceramic, choose a different tap instead. It is a cheaper mistake by a wide margin, and the range of basins is deep enough that something will match the tap you want.

---

9. Frequently asked questions

How many tap holes does a wash basin normally have?

One is the most common by far, taking either a pillar tap or a mono mixer. Basins also come with none, two or three holes, and the count is fixed when the ceramic is cast rather than chosen at installation.

Can I drill an extra tap hole in a ceramic basin?

It is not advisable. Fired, glazed vitreous china cracks unpredictably when drilled, and the basin usually fails at breakthrough. Only factory knock-outs, provided on the underside by the maker, are designed to be opened.

What tap do I need if my basin only has a cold water supply?

A pillar cold tap in the single hole. If hot water is planned later, a mono mixer with the hot tail capped is the better buy, because connecting the second pipe is then the only job left.

What is a three-hole basin mixer?

A set with the spout in the centre hole and separate hot and cold handles either side. The distance between the outer holes must match the tap set, so measure centre to centre before ordering.

Do vessel basins need a special tap?

Usually yes. A bowl sitting on top of a counter raises the rim, so a standard tap ends up too low to wash under. A taller vessel mixer, or a wall-mounted tap, puts the water where your hands are.

My basin has no tap holes at all — what fits?

A wall-mounted tap fed from a pipe stub in the wall, or a tap mounted through the counter beside the bowl. Both need their position fixed before tiling or fabrication, so decide early.

---
