Water Closet Spare Parts: What Fails and When to Replace

1. Introduction: the pan is the part that does not fail

Quick Answer: Vitreous china is glass fused to clay. Short of a crack from impact, it does not wear out. So when a toilet stops working properly, the fault is almost always in the fittings — the fill valve, flush valve, seals, seat hinges or the angle valve at the wall.

People replace whole toilets for problems that cost a fraction of the price to fix.

A toilet that runs continuously, flushes weakly, refills slowly, hisses at night or leaks a little at the base is not a worn-out toilet. It is a working pan with a tired component attached to it, and the component in question is usually one you can name from the symptom in under a minute.

Understanding the parts also changes how you buy. Two pans that look identical in a showroom can have very different long-term stories depending on whether their internals are a common standard or a proprietary design nobody stocks in five years' time.

This guide covers what is actually inside a modern water closet, what fails and roughly when, how to work backwards from the symptom, why the local failure modes are not the ones imported guides describe, and when replacing a part stops being the right answer. The video below opens up a cistern so you can see the two main assemblies working.





---

2. What is actually inside a water closet

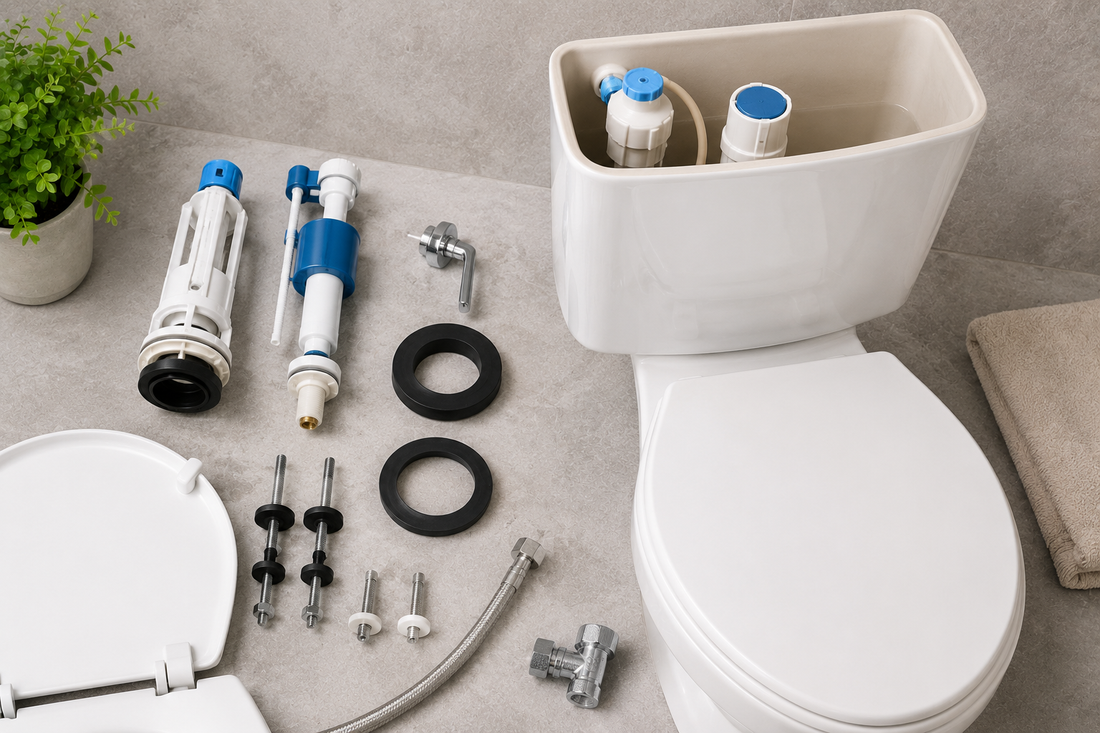

Quick Answer: A close-coupled toilet has about eight serviceable parts: the fill valve, the flush valve, the push button or handle, the tank-to-bowl gasket, the tank bolts and washers, the seat and its hinges, the pan-to-floor seal, and the angle valve and flexible hose at the wall.

That is the entire list. Everything else is ceramic.

The replaceable components of a close-coupled water closet, what each part does, the material it is usually made from and the fault that appears when it fails.

Part	What it does	Usually made of	Fault when it fails
Fill valve	Refills the cistern and stops at the set level	Plastic body, rubber diaphragm	Never stops filling, or fills very slowly
Flush valve	Releases the cistern water into the pan	Plastic body, rubber seal	Water trickles into the bowl constantly
Push button / handle	Operates the flush valve	Plastic or plated metal	Button sticks down or does nothing
Tank-to-bowl gasket	Seals cistern to pan	Moulded rubber	Water appears between tank and pan
Tank bolts and washers	Clamp the cistern down	Metal bolt, rubber washer	Seepage or a cistern that shifts
Seat and hinges	Seating surface and soft-close action	Thermoset seat, damped hinge	Lid slams, or the seat rocks
Pan-to-floor seal	Seals the outlet to the drain	Wax ring, rubber connector or silicone	Damp or odour at the base
Angle valve and hose	Isolates and feeds the cistern	Brass or stainless body, braided hose	Weeping at the wall, or will not shut off

Compiled component reference for a standard close-coupled water closet. Wall-hung and concealed-cistern installations use the same functional parts in a different housing.

Wall-hung and concealed installations do not change the list, only the access. The same fill valve and flush valve exist behind the wall, reached through the flush plate aperture, which is why the plate on a concealed system is a service hatch as much as a design feature.

---

3. What fails first, and roughly when

Quick Answer: Rubber goes first. Flush valve seals and fill valve diaphragms sit permanently in warm water and are the earliest routine replacements. Metal fixings and the pan itself are the last things to give trouble, if they ever do.

Ranking the parts by how soon they typically need attention makes the maintenance picture obvious.

Water closet components ranked by relative expected service life, showing what wears each part out and whether replacement is a routine or occasional job.

Component	Relative service life	What wears it out	Replacement is
Flush valve seal		Constant immersion, rubber hardening	Routine
Fill valve diaphragm		Grit after supply interruptions	Routine
Soft-close hinge		Daily cycling, forced closing	Occasional
Flexible supply hose		Pressure cycling, braid fatigue	Occasional
Angle valve		Seized spindle from never being turned	Occasional
Tank-to-bowl gasket		Compression set over years	Rare
Ceramic pan		Impact damage or glaze etching only	Rare

Compiled reliability model for a domestic water closet in Malaysian conditions. Bar lengths express relative expected service life as a planning aid, not measured field data or a manufacturer's warranty position.

Two patterns are worth reading out of that. The parts at the top of the list are cheap and quick, so a toilet that gets a five-minute intervention every few years never develops the compound problems that make people give up on it. And the angle valve fails for an unusual reason — not use, but disuse. A valve nobody has turned in eight years will often refuse to close on the day you need it, which is exactly when you are already dealing with something else.

---

4. Working backwards from the symptom

Quick Answer: Almost every toilet fault names its own part. Water running into the bowl is the flush valve. Water hissing and never stopping is the fill valve. Damp at the base is the floor seal. Weak flush with a full cistern is usually blocked rim channels rather than a valve at all.

The table below is the diagnostic most households actually need.

Common water closet symptoms matched to the component responsible, the confirming check to carry out and the part to obtain.

Symptom	Most likely part	Confirming check	What to buy
Constant trickle into the bowl	Flush valve seal	Cistern level drops with the tap off	Seal, or the whole flush valve
Hissing that never stops	Fill valve	Water above the overflow line	Fill valve assembly
Cistern refills very slowly	Fill valve strainer	Grit visible on the inlet filter	Often nothing — clean it
Weak flush, cistern full	Blocked rim channels	Uneven water flow around the bowl	Nothing — clear the channels
Damp or odour at the base	Pan-to-floor seal	Dampness returns after drying	Seal kit, and refit the pan
Weeping at the wall connection	Angle valve or hose	Dry the joint and watch it	Angle valve and flexible hose
Button sticks or does nothing	Push button mechanism	Flush works when lifted by hand	Button and rod assembly

Compiled diagnostic reference for household water closets. Covers the common single-fault cases; combined or intermittent faults may need a physical inspection.

The two "buy nothing" rows are the useful ones. A slow refill and a weak flush are both frequently mistaken for failed valves when the actual problem is a clogged strainer or a partly blocked rim, and both are cleaning jobs. Ruling those out first is what keeps a toilet repair from turning into a parts shopping trip.

---

5. Why the local failure modes are different

Quick Answer: Most English-language toilet repair advice is written for hard-water countries, where limescale is blamed for everything. Malaysian mains water is soft. Here the two things that actually damage valves are sediment carried in after a supply interruption, and rubber ageing faster in year-round warm water.

This matters because it changes what you check first.

After a supply cut, works on the main, or the tank being drained and refilled, the first water back through the pipe carries whatever was sitting in it. That grit reaches the fill valve before it reaches anything else, and a fine strainer is exactly the wrong shape to deal with it. A valve that started misbehaving within days of a water interruption almost never needs replacing it needs its inlet filter taken out and rinsed.

The second factor is temperature. Rubber seals harden and lose their compliance more quickly in water that never gets cold, which is why flush valve seals sit at the top of the service-life table. A seal that has gone hard does not tear dramatically; it simply stops sealing at low pressure, and the toilet develops a trickle that is easy to ignore for months.

What you can safely stop worrying about is descaling. Advice to soak parts in vinegar or fit a scale filter is aimed at a problem the local supply does not create. The same reasoning applies to removing bowl stains — the marks here are organic, not mineral.

---

6. Buying the right part instead of the nearest one

Quick Answer: Some toilet parts are effectively universal and some are model-specific. Fill valves, angle valves and flexible hoses are usually interchangeable. Flush valves, push buttons and seats often are not. Photograph the old part next to a ruler before you go shopping.

Knowing which category a part falls into decides whether you can walk into a shop or need to go back to the supplier.

Water closet parts classified by how interchangeable each is between models, the detail that must be matched when buying and where the part is typically sourced.

Part	Interchangeable?	Match this detail	Where to get it
Fill valve	Mostly yes	Inlet position and tank height	Any sanitary ware supplier
Angle valve and hose	Yes	Thread size and hose length	Any sanitary ware supplier
Flush valve	Sometimes	Outlet diameter and overall height	Supplier of the original set
Push button	Rarely	Aperture size and rod length	Supplier of the original set
Seat and hinges	Depends on the pan	Length, width, hole spacing	Either, with measurements
Smart toilet internals	No	Exact model and version	Manufacturer only

Compiled sourcing reference for water closet spare parts. Interchangeability is typical rather than guaranteed; confirm against the specific product before ordering.

This is also an argument for how you buy the toilet in the first place. Big Bath's close-coupled WC sets arrive as a matched pan, cistern, seat and dual-flush mechanism, which means the parts story stays with one supplier rather than being reassembled from three. And where a fitting genuinely is a stand-alone item a wall-mounted or sensor unit, for instance the flush valve range covers exposed, concealed and sensor types separately.

---

7. When parts stop being the right answer

Quick Answer: Replace the toilet when the ceramic is cracked, when the glaze is etched so stains never clear, or when the internals are no longer obtainable. A part that cannot be sourced turns every future fault into the same conversation.

There is a point where servicing becomes false economy, and it is easy to recognise.

A crack in the pan or cistern is decisive ceramic cannot be repaired reliably under pressure, and a cistern crack will eventually let go all at once. Etched glaze is the second case: the surface has lost its seal, so soiling grips and no cleaning routine keeps up. Both of these are the pan telling you it is finished.

The third case is subtler and more common. If the flush valve for a ten-year-old proprietary set is not made any more, the toilet still works today but has no future maintenance path. That is worth acting on before something fails, not after, because the replacement decision then happens at a convenient time rather than on a Sunday night.

When you do reach that point, the constraint is the drain, not the design. The outlet has to line up with what is already in the floor or wall, which is why the trap type and setout distance is the first measurement of any replacement, and why Big Bath lists that figure in the product title across the water closet range — S-trap rough-ins at 150, 200, 225, 250, 275 and 300mm, plus P-trap at 180mm.

---

8. Conclusion: a toilet is a serviceable appliance

Treating a water closet as a sealed unit is what makes people replace working toilets. Treating it as eight replaceable parts around a piece of ceramic that lasts decades is closer to the truth, and much cheaper.

The practical version is short. Learn the two valves, because between them they cause most faults. Check the inlet strainer whenever the supply has been interrupted rather than assuming the valve has failed. Turn the angle valve occasionally so it still moves. And when you do buy a new toilet, ask where the internals come from, because that answer decides whether year ten is a five-minute job or a new toilet.

The parts themselves are rarely the hard bit. Identifying the right one is, and a photograph of the old component with a ruler beside it settles most of those conversations before they start.

---

9. Frequently asked questions

What are the main spare parts in a water closet?

The fill valve, the flush valve, the push button or handle, the tank-to-bowl gasket, the tank bolts and washers, the seat and hinges, the pan-to-floor seal, and the angle valve and flexible hose at the wall. Everything else is ceramic.

Why does my toilet keep running after flushing?

Water running into the bowl points to the flush valve seal, which has hardened and no longer seats. Water hissing and never shutting off points to the fill valve instead. Watch which side the water is entering to tell them apart.

Why does my cistern refill so slowly?

Usually a blocked strainer on the fill valve rather than a failed valve. Grit carried in after a supply interruption collects on the inlet filter. Close the angle valve, remove the filter and rinse it before buying anything.

Are toilet spare parts interchangeable between brands?

Fill valves, angle valves and flexible hoses usually are. Flush valves, push buttons and smart toilet internals often are not, because the aperture, rod length and outlet dimensions are model-specific. Photograph the old part with a ruler beside it.

Do I need to descale my toilet parts in Malaysia?

No. Malaysian mains water is soft, so limescale is rarely the problem. Descaling advice comes from hard-water countries. The local equivalents are sediment on the inlet filter and rubber seals hardening in year-round warm water.

When should I replace the whole toilet instead of a part?

When the ceramic is cracked, when the glaze is etched so stains never fully clear, or when the internals are no longer available for your model. Those three cases have no component-level fix.

---
