Wall Hung Toilet vs Floor Mounted: Which to Choose

1. Introduction: you are choosing a wall, not a toilet

Quick Answer: A floor-mounted toilet bolts to the slab and connects to a drain in the floor. A wall-hung toilet hangs off a concealed steel frame, with the cistern and waste connection inside a false wall. Nearly every practical difference between them comes from that frame, not from the ceramic.

Showroom photographs make this look like a styling choice. It is not.

When a wall-hung toilet goes in, the visible pan is the last and smallest part of the job. Before it can hang there, someone has to fix a load-bearing frame to the structure, run the waste horizontally into a wall outlet, plumb the cistern inside that frame, and then build and tile a false wall in front of it. The pan arrives at the end.

That sequence is why the honest comparison is not "which toilet looks better" but "what does my bathroom already have, and what would changing it involve". In a Malaysian home the answer is usually a floor drain in a concrete slab, which pushes the arithmetic firmly one way.

This guide covers what is genuinely different between the two, what the false wall costs you in floor area, what the local catalogue actually stocks, where wall-hung earns its money in a wet Malaysian bathroom, and how each behaves when something eventually needs servicing. The video below shows a frame installation from start to finish, which is the clearest way to see what is involved.





---

2. What is actually different between the two

Quick Answer: Four things change: what carries the weight, where the waste exits, where the cistern lives, and how you reach the mechanism when it needs work. Everything else — flush volume, seat, bowl shape, glaze is the same on both.

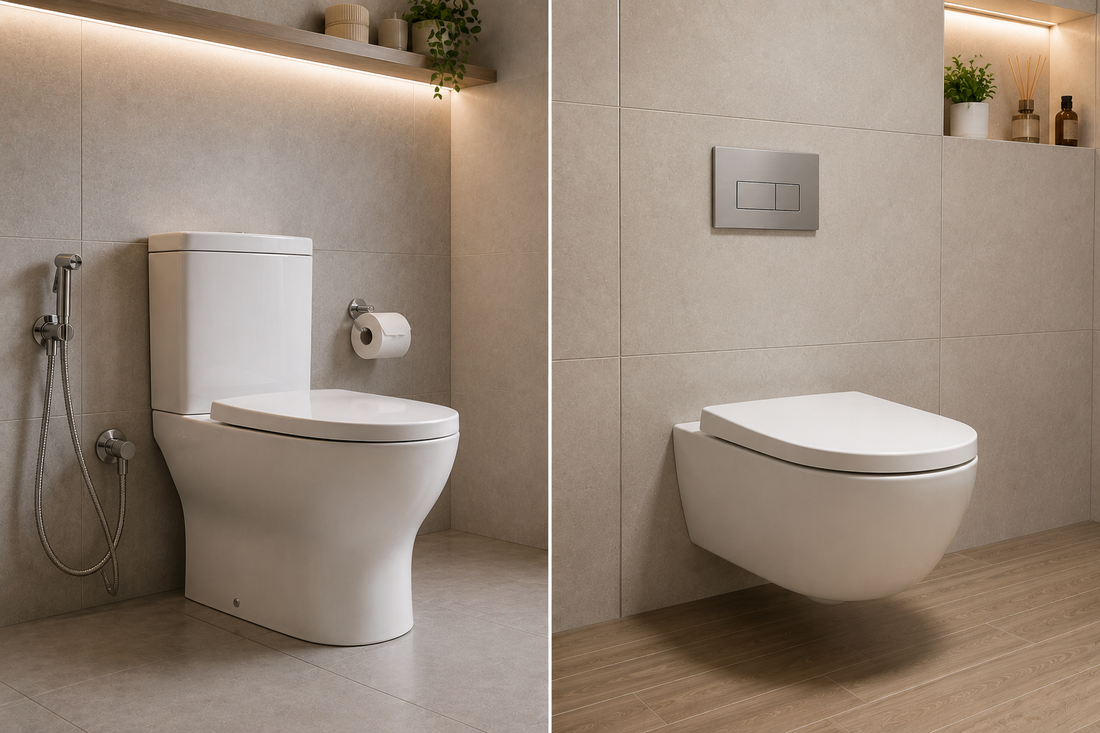

Setting the two side by side makes it clear how little of the difference is about the toilet.

Wall-hung and floor-mounted toilets compared by what carries the load, where the waste exits, where the cistern sits, how the mechanism is accessed and what the installation involves.

Aspect	Floor mounted	Wall hung
Carries the weight	The floor slab	A steel frame fixed to structure
Waste exits	Down through the floor, or to the wall	Horizontally into the wall, always
Cistern location	On the pan, visible	Inside the false wall
Access to the mechanism	Lift the cistern lid	Remove the flush plate
Installation	Plumber, part of a day	Plumber plus builder and tiler
Height is set by	The pan itself	Where you fix the frame

Compiled comparison of the two mounting systems. Describes the standard arrangement for each; individual installations vary with building structure.

The last row is the one nobody mentions and several people appreciate. Because a wall-hung frame is set at whatever height you fix it, the seat height can be chosen a genuine advantage for a taller household, or for anyone who finds a standard pan low. On a floor-mounted toilet the height is whatever the manufacturer moulded.

---

3. The false wall, and what it takes from the room

Quick Answer: Wall-hung toilets are sold as space savers, and in one direction they are the pan projects less into the room. But the frame and duct behind it push the wall forward. In a small bathroom the net floor area often barely changes, and can get worse.

This is the arithmetic that decides whether the idea suits your bathroom or works against it.

The space effects of a wall-hung toilet installation, showing what is gained, what is given up and which bathroom shapes come out ahead or behind.

Effect	What happens	Who benefits	Who loses out
Pan projection	Shorter, no cistern behind it	Narrow rooms needing walking room	Nobody
Wall thickness	Duct pushes the wall into the room	Rooms with a recess to fill	Already-tight bathrooms
Floor underneath	Completely clear	Anyone who mops or squeegees	Nobody
Duct top surface	Creates a usable shelf	Bathrooms short on storage	Nobody
Ceiling height feel	Uninterrupted floor reads larger	Small rooms with good light	Nobody

Compiled planning reference for wall-hung toilet installations. Space effects are qualitative; actual dimensions depend on the frame and duct construction used.

Read the table as a whole and the honest summary is this: wall-hung usually makes a bathroom feel bigger without making it bigger. The pan takes less room, the wall takes more, and the visual gain comes from the uninterrupted floor rather than from recovered square footage. That is a real benefit it is just not the one the marketing describes.

Where it genuinely wins on space is when the duct fills something that was already wasted: a recess, a boxed-in soil pipe, or the awkward gap beside a structural column. In that case you get the clear floor and lose nothing at all.

---

4. What the drain in your floor is telling you

Quick Answer: Wall-hung toilets need a wall outlet. Most Malaysian homes have a floor outlet, which is why the catalogue is dominated by S-trap pans. If your drain goes down through the slab, converting to wall-hung means re-routing waste, not just changing a toilet.

The stock profile of a Malaysian supplier is the clearest evidence of what local buildings actually have.

Toilet outlet configurations stocked in Big Bath's water closet range, showing the rough-in distances offered for each, the mounting each supports and relative availability.

Outlet type	Rough-ins stocked	Waste exits	Relative availability
S-trap	150, 200, 225, 250, 275, 300mm	Down through the floor
P-trap	Around 180mm	Horizontally into the wall
Wall-hung frame	Set by the frame, not the pan	Horizontally into the wall

Compiled from the rough-in distances published on Big Bath's water closet and close-coupled WC set collections. Bar lengths express relative availability within that range as a planning aid, not market share.

The pattern is unambiguous. Six S-trap rough-in distances are stocked against a single common P-trap dimension, and the close-coupled sets follow the same split the great majority are S-trap, with P-trap versions offered alongside a handful of models rather than across the board.

That is not a supplier preference, it is a reflection of how Malaysian bathrooms are built: a concrete slab with the soil pipe dropping through it. Which means the first question for anyone considering wall-hung is not about style at all. Look at your existing pan. If the waste disappears into the floor, you are looking at re-routing a soil pipe, and the trap and setout guide explains why that is structural work rather than plumbing work.

---

5. Where wall-hung genuinely earns its money here

Quick Answer: The clear floor. In a Malaysian bathroom the area around the pan gets genuinely wet from the bidet spray, from a wet-room layout, from mopping — and a floor-mounted pan has a base, a silicone joint and a set of shadowed corners sitting right in the middle of it.

This is the argument that travels least well from overseas reviews, and it is the strongest one locally.

Imported comparisons treat "easier to clean underneath" as a minor convenience, because in a dry bathroom the floor around a toilet is dry. That is not the arrangement here. Almost every Malaysian toilet has a hand bidet beside it, most bathrooms are washed down rather than wiped, and many have no separation between the shower area and the rest of the room. The floor around the pan is a wet zone, all day, every day.

A floor-mounted pan puts three problems in that zone: a footprint you cannot mop under, a silicone seal at the joint that discolours, and the corners where the base meets the tile. None of them is serious on its own; together they are the part of the bathroom that always looks tired first.

Remove the pan from the floor and all three disappear. The squeegee goes straight through, the tile dries evenly, and there is no seal to go grey. Combined with the shelf the duct creates for a tidier accessory layout, that is a real daily improvement rather than a photographic one.

---

6. Which to choose, by situation

Quick Answer: Choose wall-hung when the walls are already coming off and the waste can run horizontally. Choose floor-mounted when you are replacing a toilet, when the drain is in the slab, or when the bathroom belongs to a tenant rather than to you.

The decision is nearly always settled by what stage of work you are at.

Common household situations matched to the appropriate toilet mounting type, with the deciding reason and the main caution for each.

Situation	Choose	Deciding reason	Caution
Swapping an old toilet	Floor mounted	Existing drain already suits it	Match the setout exactly
Full bathroom renovation	Either	Walls are open anyway	Confirm the waste can run to the wall
Small bathroom, no recess	Floor mounted	The duct would eat the room	Look for a short-projection pan
Small bathroom with a recess	Wall hung	The duct fills wasted space	Check the recess depth first
Rented or tenanted unit	Floor mounted	Simpler to service and replace	Nothing significant
Accessible bathroom	Wall hung	Seat height can be set to suit	Frame must be rated for the load

Compiled decision reference for Malaysian bathrooms. Individual buildings may impose additional structural or drainage constraints; confirm on site before committing.

The last row is worth a note. A wall-hung frame is the only way to set the seat height deliberately, which makes it a serious option for an ageing-in-place bathroom provided the frame is properly rated and fixed into structure rather than into a partition.

---

7. The year-ten question

Quick Answer: Both systems need the same parts eventually. On a floor-mounted toilet you lift a lid. On a wall-hung one you remove the flush plate which works fine, provided the parts behind it still exist and the aperture gives real access.

Servicing is where a wall-hung installation is either fine or expensive, with very little in between.

The mechanism inside a concealed frame is an ordinary fill valve and flush valve, and a well-designed frame is made to be serviced through the plate opening. Reputable systems publish spare parts for many years and size the aperture so a hand and a tool will fit. Nothing about the arrangement is inherently difficult.

The risk is a frame chosen on price. If the parts are proprietary and the supplier disappears, or if the aperture is too small to reach the valve, the only route to a leaking cistern is through the tiles. That is the scenario that gives wall-hung toilets a bad reputation, and it is a purchasing failure rather than a design one.

So the question to ask before buying is not "how does it look" but "who supplies the parts for this frame, and for how long". It is the same question that decides whether any toilet is a twenty-year fitting, as the spare parts guide sets out it just carries more weight when the answer is behind a tiled wall. A showroom visit is the quickest way to get a straight answer on it.

---

8. Conclusion: check the drain before you fall in love

Wall-hung toilets look better, keep the floor clear and let you set the seat height. Those are real advantages, and in a wet Malaysian bathroom the clear floor is worth more than most overseas reviews give it credit for.

But they are advantages you buy with a frame, a false wall, a horizontal waste run and a commitment to a parts supply you cannot see. If your bathroom is being stripped anyway and the soil pipe can reach a wall, that is a fair trade. If you are replacing a toilet in a working bathroom where the waste drops through the slab, it is not close.

So the sequence is simple. Look at where the waste from your current pan goes. If it goes into the floor, buy a floor-mounted pan and spend the difference on a bowl that is easier to keep clean. If it goes into the wall, or the walls are coming off anyway, wall-hung is genuinely on the table — and the questions that matter next are the frame's load rating and who will still be making its parts in ten years.

---

9. Frequently asked questions

Can I replace a floor-mounted toilet with a wall-hung one?

Only if the waste can be re-routed horizontally into the wall. Most Malaysian homes drain through the floor slab, so the change means re-routing a soil pipe and building a false wall a renovation rather than a swap.

Do wall-hung toilets really save space?

The pan projects less into the room, but the frame and duct push the wall forward. In most bathrooms the net floor area barely changes. The real gain is the clear, uninterrupted floor, which makes the room feel larger and easier to clean.

Are wall-hung toilets strong enough?

Yes, when the frame is properly rated and fixed to structure rather than to a light partition. The load is carried by the steel frame behind the wall, not by the tiles or the board in front of it.

How do you service a wall-hung toilet cistern?

Through the flush plate. The plate lifts off to give access to the fill valve and flush valve inside the frame. Before buying, confirm the aperture is large enough to work through and that spare parts for that frame will remain available.

Which is better for a Malaysian bathroom with a bidet spray?

Wall-hung, if the plumbing allows it. The floor around the pan stays wet from the spray, and a wall-hung pan removes the base, the silicone joint and the shadowed corners that would otherwise sit in that wet zone.

Why are most toilets in Malaysia floor mounted?

Because local bathrooms are built on concrete slabs with the soil pipe dropping through the floor, which suits an S-trap pan. Big Bath stocks six S-trap rough-in distances against a single common P-trap dimension, which reflects that.

---
