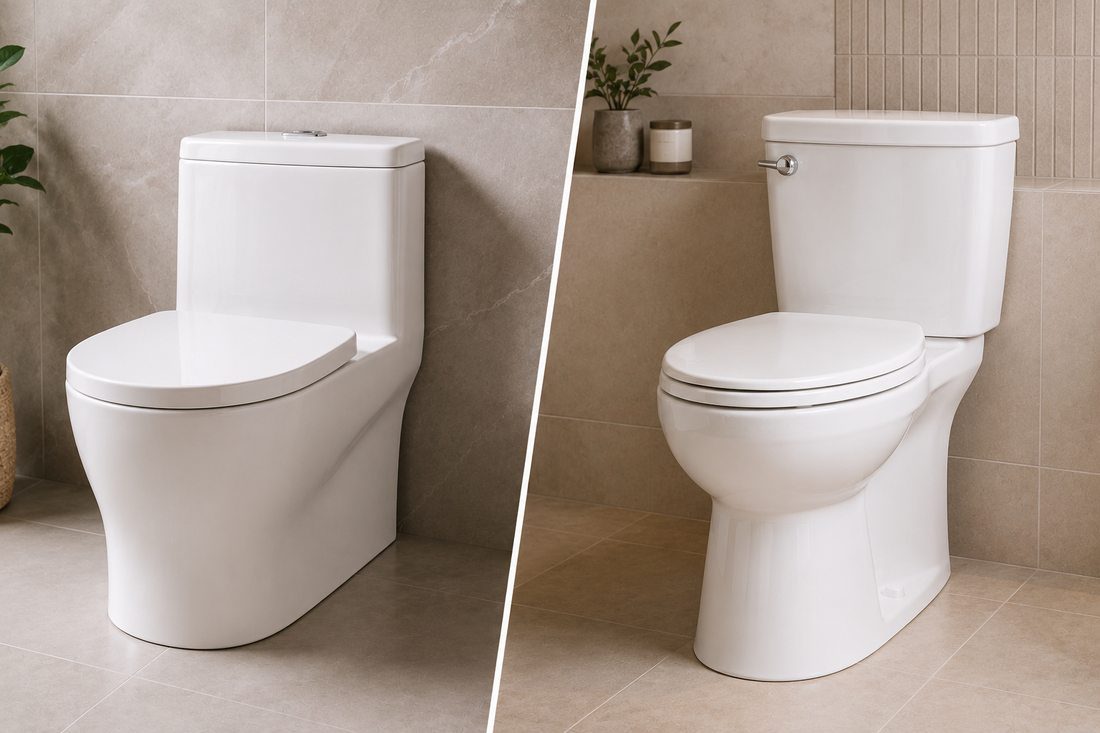

One Piece WC vs Close Coupled: Cleaning and Cost
TL;DR: The entire difference is one joint. A close-coupled toilet is a tank bolted to a bowl with a rubber gasket between them; a one-piece is both moulded as a single casting with no joint at all. Removing that joint buys you a smoother shape to wipe and one fewer thing to leak but it also means the whole unit is a single heavy ceramic item, and the trap and parts choice on close-coupled sets is far wider. In Malaysia the deciding factor is usually the trap setout, not the seam.
1. Introduction: you are buying or avoiding one joint
Quick Answer: A one-piece WC has no tank-to-bowl joint because the two are fired as one casting. A close-coupled toilet has that joint, sealed by a gasket and clamped by two bolts. Every advantage and disadvantage claimed for either type comes back to that single detail.
Strip away the showroom language and this is a very small comparison with a few large consequences.
The joint exists for a manufacturing reason: casting a tank and a bowl separately is easier, cheaper and far more forgiving than firing them as one piece. Bolting them together afterwards produces a toilet that works identically and costs less to make. What it also produces is a horizontal seam at the back of the bowl, two bolt heads inside the tank, and a rubber gasket that has a service life.
A one-piece removes all of that in exchange for a bigger, heavier, harder-to-make casting. Whether that is worth it depends less on the toilet than on the bathroom it is going into and how you buy.
This guide covers what the joint actually does, how much the cleaning claim is really worth, what nobody mentions about handling a single-casting toilet, what the local catalogue actually stocks, and which type suits which household. The video below is a straightforward side-by-side if you want the visual version first.
Watch: one piece and two piece toilets side by side
A plain comparison of the two constructions, including the points where they genuinely differ in use.
Source: One Piece Vs Two Piece Toilet: (The Honest Truth) — Homey Vibe
2. What the joint is, and what it costs you
Quick Answer: The tank-to-bowl joint is a moulded rubber gasket compressed by two bolts through the base of the cistern. It is reliable for years, it is replaceable, and it introduces one seam, two bolt washers and a narrow gap that a cloth cannot reach.
Setting out exactly what the joint adds keeps the discussion honest in both directions.
| Feature | What it does | How it fails | Serviceable? |
|---|---|---|---|
| Tank-to-bowl gasket | Seals the water path between tank and bowl | Compression set over many years | Yes, a low-cost part |
| Tank bolts and washers | Clamp the tank down evenly | Washers harden, seepage follows | Yes, sold as a kit |
| External seam | Nothing — a by-product of the joint | Collects dust and moisture | Cleaning only |
| Gap behind the tank | Nothing — clearance for the bolts | Hard to reach with a cloth | Cleaning only |
| Separable tank | Lets the two parts be carried apart | Not a failure — an advantage | Not applicable |
Compiled reference for the tank-to-bowl joint on close-coupled toilets. Failure modes are typical over a long service life rather than expected faults.
Notice how the list divides. Two rows are consumable parts with a long life and a cheap replacement. Two are cleaning nuisances. Only the last one is a genuine functional difference, and it is in favour of the close-coupled design. The joint is not a weak point so much as a set of small trade-offs.
Key takeaway: The joint adds two replaceable parts and two awkward surfaces. It is not a failure waiting to happen.
3. The cleaning claim, sized honestly
Quick Answer: A one-piece is easier to wipe, but the seam is not where a toilet actually gets dirty. The seat hinges, the underside of the rim and the pan base account for far more cleaning effort than the tank joint does — and none of those change between the two types.
Ranking the parts of a toilet by how much cleaning attention each really demands puts the seam in perspective.
| Area | Relative effort | What soils it | One-piece helps? |
|---|---|---|---|
| Seat hinges |
|
Splash, humidity, rarely lifted | No |
| Under the rim |
|
Biofilm in the flush channels | No — that is a rimless question |
| Pan base and floor joint |
|
Bidet spray and mopping water | No — that is a wall-hung question |
| Behind and beside the tank |
|
Dust settling on damp surfaces | Yes, noticeably |
| The tank-to-bowl seam |
|
Dust and condensation | Yes, but it is a small job |
Compiled cleaning-effort model for a household toilet in Malaysian conditions. Bar lengths express relative attention required as a planning aid, not measured cleaning time.
The honest reading is that a one-piece improves the fourth and fifth rows and does nothing for the first three. If cleaning is the reason you are considering one, the two changes that would actually reduce your weekly effort are a rimless bowl and a quick-release seat — both available on close-coupled sets, and both cheaper than the jump to a single casting.
Key takeaway: A one-piece cleans up the tank area only. The rim and the hinges do most of the work, and neither changes.
Buying for easier cleaning?
The rim is where the real work is — see how rimless bowls compare →
4. Weight, handling and the risk nobody mentions
Quick Answer: A one-piece toilet arrives as a single large ceramic object. It has to be carried, lifted and positioned in one go, and if any part of it is damaged the whole unit is scrap. A close-coupled set travels as two manageable pieces, and a broken tank is replaceable on its own.
This is rarely discussed and it matters more in Malaysia than in a detached-house market.
Getting a toilet into a condominium means a service lift, a corridor, sometimes a stairwell, and a bathroom door that a bulky object has to turn through. Two moderate pieces are straightforward. One large, heavy, awkwardly balanced casting is a different job, and it is the point at which most delivery damage happens.
The consequence of damage is asymmetric too. Chip the tank of a close-coupled set and you replace a tank. Chip a one-piece anywhere and the entire toilet is finished, because there is nothing to separate. Ceramic cannot be repaired reliably where water and pressure are involved.
None of this makes one-piece toilets fragile in service once installed they are as durable as anything else, arguably more so with no joint to relax. But the window between the loading bay and the bathroom floor carries a risk that the specification sheet does not mention, and it is worth agreeing with the supplier who carries it.
Key takeaway: One casting means one point of failure in transit. Agree who carries the damage risk before delivery day.
5. What the local range actually offers
Quick Answer: Close-coupled dominates the Malaysian catalogue, and that is where the choice lives. Big Bath's close-coupled WC set collection runs to 27 products covering multiple trap setouts, rimless and rimmed bowls, a matt black finish and both tanked and tankless smart versions.
Availability is not a footnote here it decides whether your bathroom's setout can be matched at all.
| Variation | Options in the range | Why it matters |
|---|---|---|
| Trap setout | S-150, S-200, S-250, S-300 and P-180mm | Must match the existing drain |
| Bowl type | Washdown rimmed and washdown rimless | Decides how much rim cleaning you do |
| Seat supplied | Soft-close seat included; UF on some sets | Removes the seat sizing problem |
| Flush | Dual flush, typically 3 and 6 litres | Standard across the range |
| Finish | White, plus a matt black option | Matt finishes show marks differently |
| Smart versions | With tank (high) and without tank (basic) | Tankless smart units need a supply check |
Compiled from the product listing of Big Bath's close-coupled WC set collection. Reflects the range at the time of writing; stock varies.
Two things follow from that spread. First, a close-coupled set is the practical choice for anyone whose drain setout is anything other than the most common dimension, simply because the options exist. Second, the seat problem disappears — the set ships with a matching soft-close seat, which removes the whole business of measuring a pan for a replacement seat at least for the first few years.
One-piece designs are a narrower field everywhere, not just here. When one suits your setout and your budget, it is a fine toilet. When it does not, waiting for the right one-piece to exist is a poor reason to compromise on the measurement that actually has to match.
Key takeaway: Close-coupled offers far more setouts, and each set arrives with a matching seat. That is where the practical choice is.
6. What actually drives the cost difference
Quick Answer: One-piece toilets cost more because the casting is harder to make. A larger, more complex shape has a higher rejection rate in firing, needs more careful handling and more packaging, and sells in smaller numbers. None of that makes the finished toilet flush better.
Understanding the cost driver stops you paying for something you thought you were getting.
Vitreous china shrinks as it is fired, and a bigger, more complicated form shrinks less predictably. Pieces that warp or crack are scrapped, and the cost of those failures is carried by the ones that survive. Add a bulkier crate, a heavier delivery and lower production volumes, and the premium explains itself without any reference to quality.
What you are not buying is a better flush. Flush performance comes from the bowl geometry, the rim or rimless design and the flush volume all of which exist independently of whether the tank is bolted on. A well-designed close-coupled washdown pan and a one-piece with the same internals will clear a bowl identically.
The same goes for durability in service. Both are the same glazed ceramic, and both will outlast their valves and seals many times over. If longevity is the goal, the money is better spent on a supplier who will still have the internals in ten years a point covered in the spare parts guide. Prices are not published on the storefront, so the honest way to compare two specific models is to ask.
Key takeaway: The premium buys a harder casting, not a better flush. Flush quality comes from the bowl, not the joint.
7. Which one suits your household
Quick Answer: Choose one-piece for a low-maintenance guest or master bathroom where appearance matters and the setout is standard. Choose close-coupled for anything with an awkward setout, a tight access route, a tenant, or a long expected service life.
Matching the type to the household settles it faster than comparing specifications.
| Situation | Better fit | Deciding reason | Check before ordering |
|---|---|---|---|
| Master bathroom, standard setout | One piece | Cleaner look, less to wipe | That your setout is offered |
| Unusual trap setout | Close coupled | Far more setouts available | Measure wall to drain centre |
| High floor, small lift | Close coupled | Two pieces are easier to move | Delivery route and door width |
| Rented or tenanted unit | Close coupled | Cheaper to repair part by part | Parts availability |
| Guest powder room | One piece | Low use, appearance-led | Projection against the space |
| Busy family bathroom | Either | Rimless and seat quality matter more | Bowl type and seat fixings |
Compiled decision reference for Malaysian households. Guidance is indicative; the trap setout measurement takes precedence over every other consideration.
The bottom row is the summary of the whole article. In a bathroom that gets heavy daily use, the choice between one-piece and close-coupled will make less difference to your life than whether the bowl is rimless and whether the seat lifts off for cleaning.
Key takeaway: Setout and access decide it in most homes. Where they do not, pick on looks the performance is the same.
8. Conclusion: a small difference, sensibly priced
One-piece toilets are genuinely nicer to look at and slightly quicker to wipe. That is the whole of the case, and it is a real case there is nothing wrong with buying a toilet because it looks better in a bathroom you spend time in.
What the seam is not is a weakness. The gasket and bolts on a close-coupled set are long-lived, replaceable, inexpensive parts, and the separable tank is a genuine advantage on delivery day and on the day something needs fixing. The wider range of trap setouts is a bigger practical benefit than the seam is a drawback.
So the sensible order is unchanged. Measure the setout from the wall to the centre of the drain, and see what exists at that dimension. If a one-piece is among them and the access route is kind, enjoy it. If not, a close-coupled set with a rimless bowl and a quick-release seat will be easier to live with than a one-piece with neither — and a showroom visit settles it in one trip.
9. Frequently asked questions
What is the difference between a one piece WC and a close coupled toilet?
A one-piece WC is cast as a single unit with no tank-to-bowl joint. A close-coupled toilet is a separate tank bolted to a bowl with a rubber gasket between them. Everything else flush, bowl shape, glaze, seat can be identical.
Is a one piece toilet really easier to clean?
Around the tank, yes. But most toilet cleaning effort goes into the seat hinges, under the rim and around the pan base, and none of those change. A rimless bowl and a quick-release seat reduce weekly cleaning far more than removing the seam does.
Why do one piece toilets cost more?
The casting is larger and more complex, so more units fail during firing, and the cost of those failures sits in the price of the ones that survive. Bulkier packaging and lower production volumes add to it. The flush is not better as a result.
Which type is better for a condominium?
Usually close-coupled. It travels as two manageable pieces through lifts, corridors and doorways, and if one part is damaged it can be replaced on its own rather than scrapping the whole toilet.
Does a close coupled toilet leak at the joint?
Not in normal service. The gasket and bolt washers are long-lived and, when they do eventually harden, they are inexpensive parts sold as a kit. It is a maintenance item rather than a weak point.
Which type has more trap setout options in Malaysia?
Close-coupled, by a wide margin. Big Bath's close-coupled WC set collection runs to 27 products covering S-150, S-200, S-250 and S-300mm plus P-180mm setouts, so an awkward drain position is far more likely to be matched.
